Dog Chews Food Machine takes starch as raw materials with scientific configuration and was extruded from co-extruder machine, it can be made into many kind of shapes such as stick, bone ect. This kind of dog food not only provide protein fat vitamin nutrition for dogs, but also satisfy the dog nature hobby. It has following features: strengthen teeth, clean mouth and teeth, the products can be in many shapes, like twist, bi-color, core-filling and so on.

Dog Chews Food Machine Flow chart :

1) Single color Dog chews machine
Mixer → Screw conveyer→Single screw extruder → Cooling conveyor → Cutter machine

2) Double color dog chews machine
Mixer *2→ Screw conveyer*2→Single-screw extruder*2 → Cooling conveyor → Cutter machine → elevator → Dryer

Dog Chews Food Machine

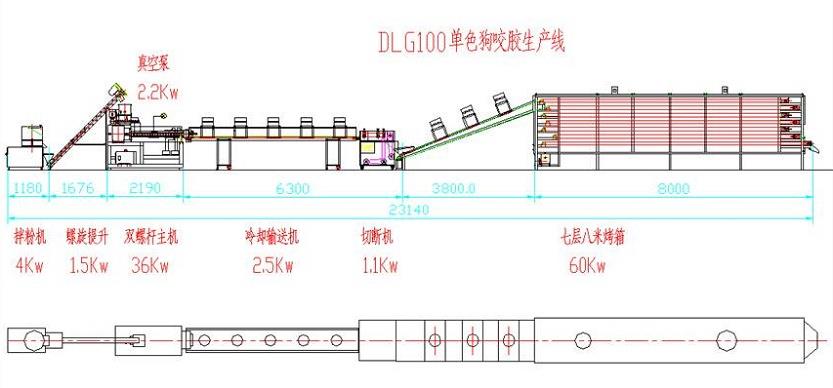

Flow chart diagram:

Our engineer could design the layout drawing according to your dimension of the factory for the feed machines

Dog Chews Food Machine

Machine Parameters

Model

Installed Power

(kw)

Power Consumption
(kw)

Capacity(kg/h)

Dimension(m)

100 processing line

47.25

120-180

17*1.2*2.2

120 processing line

200-300

20*1.5*2.2

Dog Chews Food Machine Main Features
1. Our processing line adopt international advanced technology.
2. We can adjust the cutter speed and the dies to get the different diameter and the length product
3. The Electric heating device system can control the temperature accurately
4. High temperature and high pressure can kill the salmonellosis andbacterial infections.
5. The processing line can produce both floating and sinking fish feed.

Raw material:

Materials: Corn powder, wheat flour,fish powder, bone powder, meat, glycerin, starch etc and water.
