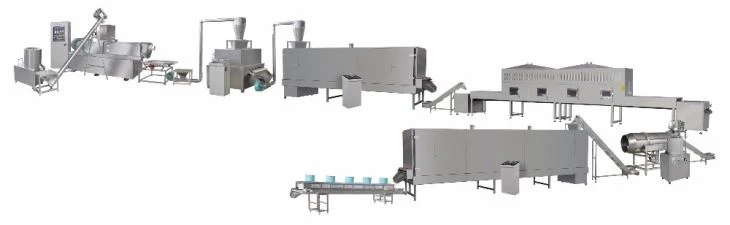

Corn Flakes Plant
This Corn Flakes Plant takes corn powder, rice powder, corn grits and other cereals powder for raw material. It includes mixing, extruding, flaking, drying, high temparture baking, flavoring and cooling. Removing the flaking machine, this line also can produce breakfast cereals, such as ball, ring, star other shapes.
Corn Flakes Plant Flow chart:
Mixer---Screw conveyor---Extruder---Vibrating feeder---Drum-type dryer—-Air conveyor---Flaking machine---Air conveyor---Dryer—-Hoister---Vibrating feeder---High-temperature inflated oven---Sugar sprayer &Flavoring line—-Dryer---Cooling machine—-(Packing machine)
Model | Installed Power | Power Consumption | Power Consumption | Dimension |
SLG65 | 85.97kw | 56kw | 100~150kg/h | 4700*2000*2600mm |
SLG70-III | 119.06kw | 82kw | 200~250kg/h | 48600*2000*2800mm |
SLG85-III | 164.06kw | 123kw | 350-450kg/h | 49400*2000*3000mm |
Corn Flakes Plant Flow chart diagram:
Our engineer could design the layout drawing according to your dimension of the factory for the snacks food machine.
Raw material:
Corn flour and other grain material
Final product:
Corn flakes, and variety shapes of breakfast cereals are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
Company Information
JINAN DATONG EXTRUSION MACHINERY Co., Ltd has a unique capability to provide complete systems for the production of baked snack foods. Over 10 years experience has given us unrivalled process expertise in technologies including mixing, forming and baking – the key processes in baked snack food and snack treat production.
1. Swiss Technology,made in China;
2. PLC touch screen for Centralized ,accurate,convenient control
3. Fully automatic control system for heating and circulated cooling accurately
4. Direct transmission of motor and distribution box reduces energy loss.
5. Imported bearing group with higher bearing capacity
6. Equip with water injecting device on barrel to meet require of various raw material and quality.
7. High-speed tool steel with hardness HRC≥62 to ensure a longer service life.
8. Modular combination of screws at will to meet require of different raw material.
9. Suspension type rotary cutter with bearing adjusting device to ensure quick,safe and accurate
10. All barrels inlaid alloy sleeve, easy to replace and extend the life span of screw. All barrels inlaid cooling water through, spread around alloy sleeve, and can accurate constant temperature required
11. All screw sleeves is kneading, ensure that not accumulate material. The screw is installed by blocks, and can be replaced optionally ratio to achieve requirements for product. Screw sleeve is installed by spline, and it is convenient and efficient. Quality of screw sleeve according to different prices is divided into: Cr12MoV, 38CrMoAl38, W6Mo5Cr4V2.
12. Applied to make all kinds of extrusion products such as corn flakes, cereal snacks ,puff snacks , wheaten snacks, 2d /3d snack pellets, pet food, fish feed, soya protein, nutritiobal powder ,modified starch and so on.
FAQ：
Q: Are you a trade company or a manufacturer?
A: We are a manufacturer, welcome to visit our factory and check it.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the tasty auto breakfast cereal corn flake processing line?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service about auto breakfast cereal corn flake processing line?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q: Do you supply any formula to buyer?
A: Yes, we supply formulas to buyer.
Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
Q: Do you supply moderate breakfast cereal corn flake processing line packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
