Snack extruder machine

High quality Snack extruder machine

Snack extruder machine has features of flexible collocation, extensive applied raw materials, various snack and easy operation. It is full automatic from mixing, extruding, shaping, cutting, drying to flavoring in one-pass operation. By changing the moulds and process technology, you can produce various shapes of puffing snacks such as rings, flowers, balls, strips, moons, stars etc. Also, you can produce core-filling snacks with the same line. All the puffed food taste crispy, easy to be digested. They meet with great favor home and abroad.

Snack extruder machine Main Features:

a. Raw materials: Adopts corn grits as raw materials meanwhile mixing with water and oil
b. Products:Hot sell puff corn snack foods making machine with low price can be used to produce Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
c. Equipment list :Mixer-Screw conveyer-Double screw extruder-Forming shper-Hoister-Dryer-Hoister-Oil sprayer-Flavoring line
d. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz,we can make it according to customers' local voltage according to different countries.
e. Machines Materials: All the machines are made by stainless steel.

Snack extruder machine:

Mixing Machine

Name: Mixer
Brand: DATONG
Power:4KW
Output:50KG per time
It is a mixer which can mix all the raw material (powder form) with water and liquid chemical additives.Capacity:30-50kg per batch.

Conveyor

Name: Screw Conveyor
Brand: DATONG
Power:1.1KW
The mixed materials can be conveyed in the stainless steel roller to the feeding machine(feeder) of extruder without any leaking ,dusting and pollution; Feed quantity and speed is even and stable.

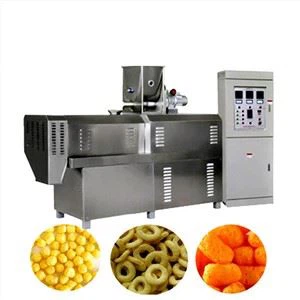

Extruder

Name: Double screw extruder
Brand:DATONG
Power:35KW
Output:200-260KG/H
By means of designing different structures and slenderness ratios according to needs of products,screw extruding system can meet different technology demands.

Shaping Machine

Name:Multi-function shaper
Brand:DATONG
Power:1.5KW
Multi-function shaper is made up of two parts, namely shaper and cutter. The expanded materials are towed by this machine as strip, reshaped as regular shape and smooth surface, and cut as the required size.

Conveyor

Name:Hoister
Brand:DATONG
Power:0.3KW
Size:2.7*0.6*1.8m
Low energy-consumption , high efficiency.

Drying Machine

Name:Electrical dryer
Brand:DATONG
Power:60KW
Output:200-260KG/H
It is used for drying .The net belt running speed can be controlled to change the food drying time in the dryer.Multi-layer dryer is with compact size than other type dryers.

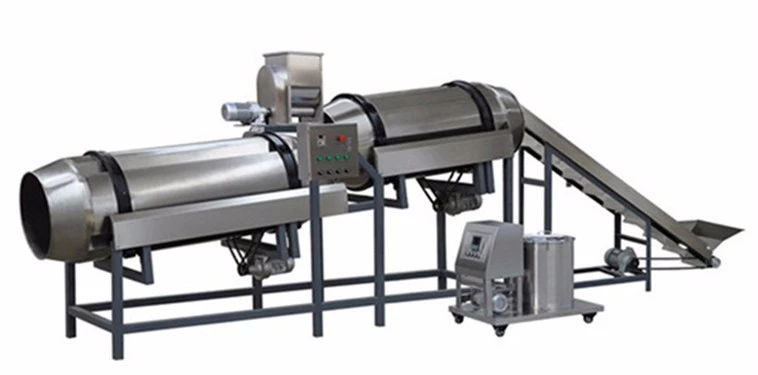

Flavoring Line

Name:Double roller flavoring machine
Brand:DATONG
Power:1.5KW
The stainless steel flavor feeder is used to spray powder flavor to the drum .We can control the spraying quantity via the different speed which controlled by the soft start.

Conveyor

Name:Cooling conveyor
Brand:DATONG
Power:0.75KW*5
There are 5 fans which can make the food be cool avoiding sticking together and be suitable for packing .The total length of the conveyor is 5 meters.It is full set stainless steel .The height of the hoister can be adjusted based on the requirement.
