Textured soy protein, often called TSP (TVP), is made from soy protein concentrate by giving it some texture. TSP is available as dry flakes or chunks. It will keep its structure when hydrated. Hydrated textured soy protein chunks have a texture similar to meat. It can be used as a meat replacement or can be added to meat. Textured soy protein contains about 50-70 percent protein. Recently the popularity of textured soy protein is increasing, mainly because of its health benefits. It has been proven that textured soy protein can help to prevent heart problems and many countries allow health claims for food, which are rich in soy protein.

Soya Extruder Machine Production Line: Mixer--Screw conveyor --Twin-screw extruder--Air conveyor--Dryer--Cooling machine

1.Productive: Automated systems for controlled and consistent production on a continuous basis, easy and quick product changeover, automated start up, simple cleaning and maintenance procedures.
2.Flexible Formula: Processing of a wide range of raw materials, such as corn, wheat, rice, potato, oat etc;
3.Widly Appication: Easy adaptation to extend the range of products by changing the segments screw;
4.Smart Control System: PLC Control of production to ensure optimized process parameters for each recipe;

5.Advanced Die and Cutting system: This designs give processors an entirely new set of templates to create innovative shapes and sizes-Balls, animals, stars, rings, pillows, triangles, curls, chips, sticks, and also letters.

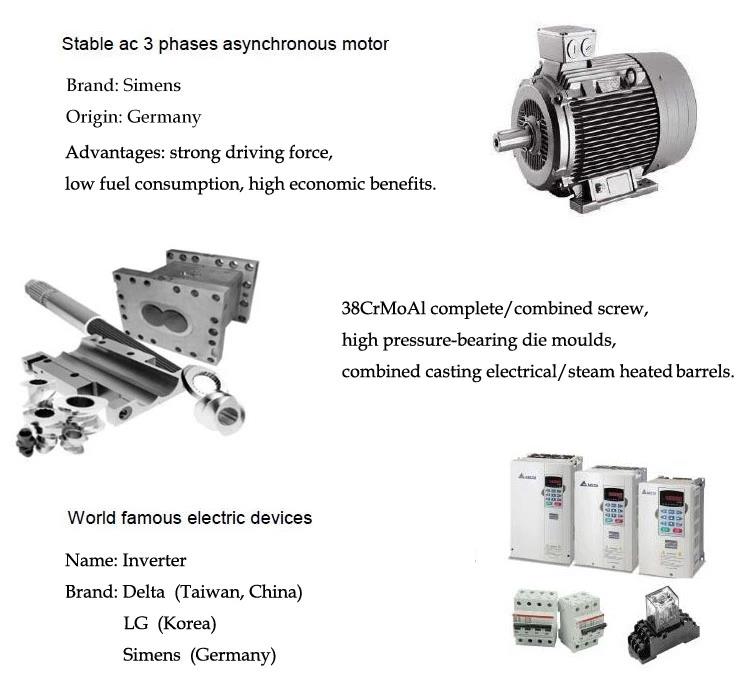

a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.

b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c. The gearbox has automatic lubrication function, with extends gear life.
d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

Raw materials: Low temperature soy flour, gluten, isolate protein, wheat, flour,corn, starch,salt, vitamins, minerals, food color etc.

Humidity: The moisture is no more than 10%.

Shapes: Ball, stick, granulate, columnar, flake.

Sizes: (1) diameter: up to 35mm (2) length: user-defined.

Machine Parameter

Model	Capacity(kg/h)	Installed Power(kw)	Actual Power(kw)	Size(mm)
SLG65-S	200-600	54	40-45	26008701950
SLG85-S	450-600	110	80-90	390012002200

Machinery Features

Screws quantity: 2 Screws raw material: 38CrMoAl

Screws diameter: 65mm Screws length: 1280mm

Barrel material: 45Steel Die material: 45Steel

Heating power: 8kw Gear case cooling oil system: yes

Size: 2600×870×1270mm

Electrical Roasting Oven

Features:

· Oven mesh operating speed can be controlled by inverter, which can control the drying time.

· Our ovens are equipped with full automatic visible temperature control system. You can set different temperatures according to different food and requirement.

· Oven mesh can be 3or 5 layers. Its size and fineness can be customizable.

· Multilayer electric oven occupies smaller area, which can save your investment.

· Uniform heating, high thermal efficiency.

· Mesh, guard plate is made of stainless steel, which is clean and easy to be cleaned.
